供应,上海,气动蝶阀优质产品,直销,约西供

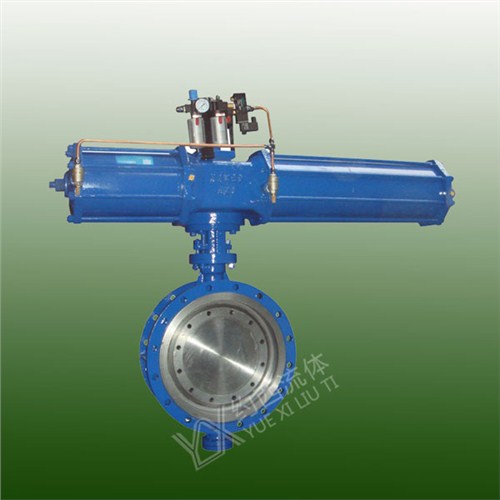

YXDA643H法兰式气动硬密封蝶阀适用于电站供热系统和催化裂化主风机道管系统和钢铁、冶金、化工等工业系统以及环保、水处理、高层建筑给水排水管路上作切断或调节流量作用
主要外形及连接尺寸 YXDA643-16<1.6Mpa>Mani Outline and Connecting Flange Size
|
DN |
外形尺寸 |
连接尺寸 |
执行器型号 |
||||||||
|
L |
L1 |
L2 |
H |
H1 |
D |
D1 |
D2 |
f |
n-φd |
||
|
50 |
108 |
164/214 |
75/91 |
277/205 |
65 |
165 |
125 |
99 |
3 |
4-φ18 |
GT65/GTE80 |
|
65 |
112 |
164/214 |
75/91 |
287/315 |
75 |
185 |
145 |
118 |
3 |
4-φ18 |
GT65/GTE80 |
|
80 |
114 |
190/246 |
91/101 |
365/375 |
85 |
200 |
160 |
132 |
3 |
8-φ18 |
GT80/GTE90 |
|
100 |
127 |
210/295 |
101/112 |
420/436 |
130 |
220 |
180 |
156 |
3 |
8-φ18 |
GT90/GTE100 |
|
125 |
140 |
247/398 |
112/139 |
436/462 |
175 |
250 |
210 |
184 |
3 |
8-φ18 |
GT100/GTE125 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
150 |
140 |
308/478 |
139/176 |
466/543 |
190 |
285 |
240 |
211 |
3 |
8-φ22 |
GT125/GTE160 |
|
200 |
152 |
378/724 |
176/228 |
593/665 |
215 |
340 |
295 |
266 |
3 |
12-φ22 |
GT160/GTE210 |
|
250 |
165 |
432/928 |
206/275 |
682/752 |
265 |
405 |
355 |
319 |
3 |
12-φ26 |
GT190/GTE255 |
|
300 |
178 |
524/928 |
228/275 |
725/772 |
305 |
460 |
410 |
370 |
4 |
12-φ26 |
GT210/GTE255 |
|
350 |
190 |
648/1033 |
275/324 |
832/880 |
340 |
520 |
480 |
429 |
4 |
16-φ26 |
GT255/GTE300 |
|
400 |
216 |
648/1129 |
275/380 |
862/968 |
360 |
580 |
525 |
480 |
4 |
16-φ30 |
GT255/GTE350 |
|
450 |
222 |
715/1845 |
324/527 |
945/1005 |
400 |
640 |
585 |
548 |
4 |
20-φ30 |
GT300/AW28S |
|
500 |
229 |
795/1845 |
380/527 |
1058/1060 |
430 |
715 |
650 |
609 |
4 |
20-φ33 |
GT350/AW28S |
|
600 |
267 |
795/2605 |
380/545 |
1108/1195 |
490 |
840 |
770 |
720 |
5 |
20-φ36 |
GT350/AW35S |
|
700 |
292 |
1380/2605 |
1170/1255 |
1170/1255 |
555 |
910 |
840 |
794 |
5 |
24-φ36 |
AW28/AW35S |
|
800 |
318 |
1860/2605 |
1325/1365 |
1325/1365 |
620 |
1025 |
950 |
901 |
5 |
24-φ39 |
AW35/AW40S |
