该系统采用立式空心轴***永磁变频电动机直接驱动螺杆泵工作，去掉了减速机部分，减少了能耗，降低了维修成本，维修更加方便、简单。
该系统结构简单、易调参、效率高，具有停电、停机、故障报警后的柔性防反转功能，可以很好的保护工作人员和设备的安全，具有低温自动加热防凝露和高温自动冷却、过转矩、过压、过电流等保护功能，属于重点推广产品。
（注：封井器、机械密封、控制柜等可根据用户要求定制）。

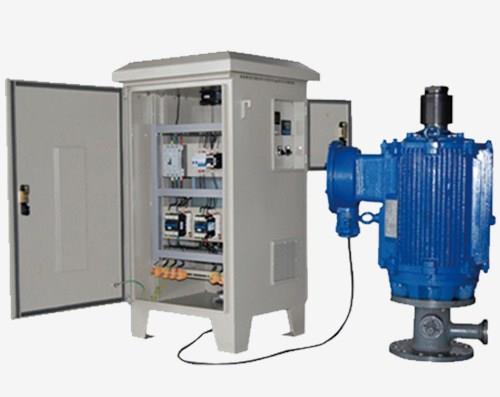

TYPLM Series motor system is an integrated device composed of explosion-proof permanent magnet motor and intelligent frequency-changed cabinet. It is a high-efficiency and energy-saving product developed for coal-bed gas and oil field screw pump unit.
This system adopts vertical hollow shaft high-efficiency permanent magnet frequency changed motor to directly drive screw pump to work, deleting reducer to reduce energy consumption and maintaining cost. It is easier and simple to be repaired.
This system has features of simple structure, easy adjustment, high efficiency and flexible anti-reverse function when power cut, machine halt, failure warning to protect workers and equipment safety. It has protection functions such as low temperature heating condensation-proof and high temperature cooling automatically, over torque, over voltage, over current. It belongs to promote popularize products.
(Note: blowout prevent, mechanical seal, control cabinet can be made as per customer’s requirement)
产品参数
|
型号 |
额定电压 |
额定转矩 |
额定转速 |
额定功率 |
效率 |
功率因数 |
调速范围 |
|
按额定转矩设计，额定转速200r/min Designed as per rated torque,rated speed 200 r/min |
|||||||
|
TYPL225S-10-400 |
380±10% |
400 |
200 |
8.4 |
90.0 |
≥0.93 |
15~200 |
|
TYPL250-20-600 |
600 |
12.6 |
90.5 |
||||
|
TYPL250-20-900 |
900 |
18.8 |
91.5 |
||||
|
TYPL250-20-1000 |
1000 |
21 |
91.5 |
||||
|
TYPL280-20-1200 |
1200 |
25 |
91.5 |
||||
|
TYPL280-20-1500 |
1500 |
31.4 |
92.5 |
||||
|
TYPL280-20-1800 |
1800 |
37.7 |
93.0 |
||||
|
按标准功率设计，额定转速200r/min Designed as per rated power,rated speed 200 r/min |
|||||||
|
TYPL225 |
380±10% |
263 |
200 |
5.5 |
90.0 |
≥0.93 |
15~200 |
|
TYPL225 |
358 |
7.5 |
90.0 |
||||
|
TYPL250 |
525 |
11 |
90.5 |
||||
|
TYPL250 |
716 |
15 |
90.5 |
||||
|
TYPL250 |
883 |
18.5 |
91.5 |
||||
|
TYPL250 |
1051 |
22 |
91.5 |
||||
|
TYPL280 |
1433 |
30 |
92.5 |
||||
|
TYPL280 |
1767 |
37 |
93.0 |
||||
|
TYPL315 |
2626 |
55 |
94.0 |
|
|||
安装形式与安装尺寸
|
型号 |
安装尺寸 |
||||||||
|
d |
D1 |
D2 |
L1 |
T |
M |
D3 |
ND |
L |
|
|
TYPL225 |
Φ90 |
Φ110 |
Φ230 0 -0.072 |
103 |
9 |
Φ290 |
Φ450 |
420 |
780 |
|
TYPL250 |
Φ490 |
470 |
830 |
||||||
|
TYPL280 |
Φ550 |
510 |
1025 |
||||||
|
TYPL315 |
Φ640 |
705 |
1280 |
||||||
